Product description

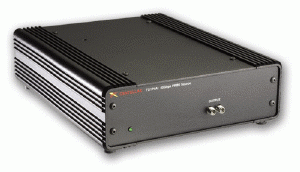

The Centellax TG1P4A is a cost-effective 22 to 44Gbps pseudo-random bit sequence generator designed for high-speed device characterization, automated production-line testing, manufacturing and R&D lab use.

The TG1P4A generates a low-jitter bit stream for a wide range of operating rates. The generator operates at the factory fixed-rate, and can be operated from 22-44Gbps when clocked with a half-rate external clock. The PRBS generates an extremely high-quality output eye (three PRBS pattern lengths) with two clock trigger outputs and a pattern trigger output. Option for Internal Reference Clock operation at 28.000 Gb/s.

Centellax offers a standard one-year warranty, with an extended warranty available, and free calibration during the warranty period.
