Current clamp for AC currents                                                            "C 100" Series

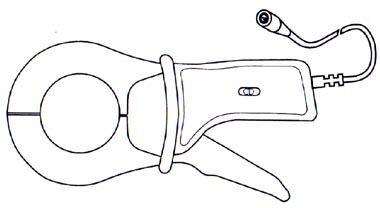

C160 model (current insulated probe)
Current  30 A peak 300 A peak 2000 A peak
Output 100 mV/A 10 mV/A 1 mV/A
This 1000 A AC clamp enables easy visualization and measuring of ¡§current¡¨ curves.
It fits any oscilloscope since it has a coaxial lead with BNC plug.
It produces a mV signal directly proportional to current.
It offers 3 different sensitivities.
Electrical specifications
Current range:
0.1 A¡K30 A peak
1 A¡K300 A peak
1 A¡K2000 A peak
Signal de sortie:
100 mV AC/A AC (1 V to 10A)
10 mV AC/A AC (1 V to 100A)
1 mV AC/A AC (1 V to 1000A)
Accuracy and phase shift (1):

¡@

Range 10 A
Primary current 0.1¡K0.5A 0.1¡K2A 2¡K10A 10¡K12A
Accuracy in % of output signal ≤ 3% + 10 mV ≤ 3% + 10 mV ≤ 3% + 10 mV ≤ 3% + 10 mV
Phase shift not specified not specified ≤ 15¢X ≤ 15¢X
Range 100A
Primary current 0.1¡K0.5A 5¡K20A 20¡K100A 100¡K120A
Accuracy in %of output signal ≤ 2% + 5 mV ≤ 2% + 5 mV ≤ 2% + 5 mV ≤ 2% + 5 mV
Phase shift not specified ≤ 15¢X ≤ 10¢X ≤ 5¢X
Range 1000A
Primary current 1¡K50A 50¡K200A 200¡K1000A 1000¡K1200A
Accuracy in % of output signal ≤ 1% + 1mV ≤ 1% + 1mV ≤ 1% + 1 mV ≤ 1% + 1 mV
Phase shift not specified ≤ 3¢X ≤ 2¢X ≤ 1¢X

Frequency range: 10 Hz｡K100kHz(-3dB)


dl/dt max.: 10 A/µs


Currents maxima: 1000 A continuous for a frequency ≤ 1kHz(limitation proportional to the opposite of frequency beyond)

1200 A for 40 min max. ( pause between measurement > 20 min)


Load impedance: ≥1M｣[ and ≤ 47 pF


Output impedance 1kHz: 515£[ ¡Ó 10%


Insertion impedance (at 50/60 Hz)
Range 10 A: < 10 m£[
Range 100 A: < 10 m£[
Range 1000 A: < 100 m£[


Ampere product x second: 1 A.s
¡@

Rising time/ Falling down time: ≤ 40 µs

Working voltage: 600 V rms

Common mode voltage: 600 V for category III and pollution level 2


Adjacent conductor influence: ≤ 1mA to 50 Hz

Influence of conductor influence in the jaws: ≤ 0.1% of output signal for frequencies / ≤ 400 Hz


Frequency influence (2):
Range 10 A:
< 10% of output signal 10 Hz¡K1 kHz
< 5% of output signal 1 kHz¡K10 kHz
< 20% of output signal 10 kHz...
..50 kHz
<3 dB 50 kHz¡K100 kHz¡@

¡@

Range 100 A:
< 5% of output signal 10 Hz¡K1 kHz
< 3% of output signal 1 kHz¡K10 kHz
< 20% of output signal 10 kHz¡K50 kHz
<3 dB 50 kHz¡K100 kHz


Range 1000 A:
< 1% of output signal 10 Hz¡K1 kHz
< 2% of output signal 1 kHz¡K10 kHz
< 10% of output signal 10 kHz¡K50 kHz
<3 dB 50 kHz¡K100 kHz


Influence of crest factor:
<1 % of output signal for a crest factor
≤ 6 with current
Range 10 A: ≤ 30 A peak(5 A rms)
Range 100 A: ≤ 300 A peak(50 A rms)
Range 1000 A: ≤ 2000 A peak(500 A rms)
Influence of DC current superposed to nominal current:
<1 % of output signal for a current≤ 30A DC

¡@

Mechanical specifications
Operating temperature: -10˚ to + 50˚C
Storage temperature: -40˚ to + 70˚C
Influence of temperature: ≤ 0.15% of output signal per 10 K
Operating humidity: From 0 to 85% of RH with linear decrease beyond 35˚C
Influence of humidity: < 0.1% of output signal from 10% to 85% of RH
Altitude: - Operating: 0¡K2000 m / - Non-operating: 0¡K12000 m
