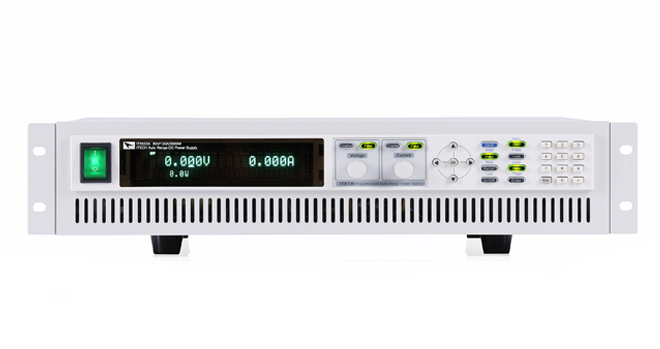

IT6500 Series Wide-range High-power DC Power Supply

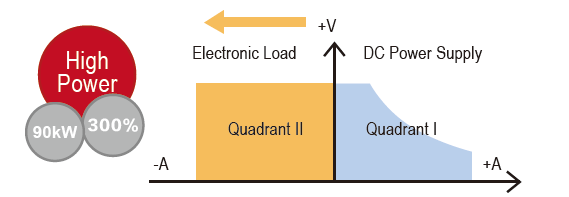

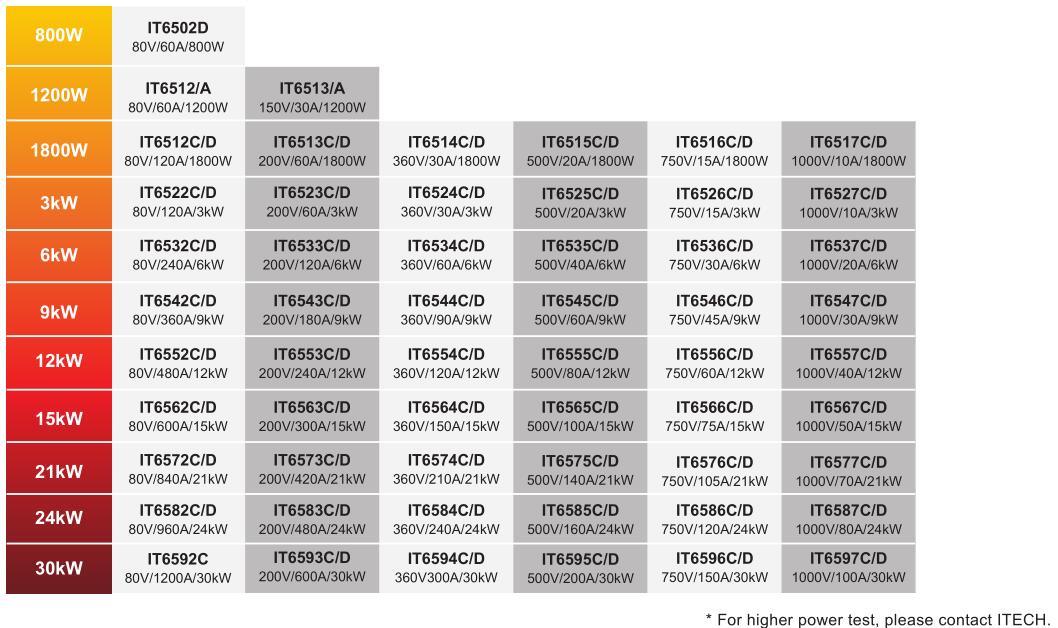

With ITECH’s latest technology, the IT6500 series offers a full-featured high-performance power test solution. With fast response these DC power supplies provide users with a new level of power supply performance. From 800W to 30 kW, the whole series include more than 100 models. The maximum output voltage and current is up to 1000V and 1200A respectively. With its auto ranging capability, it also has a super wide range of voltage and current applications. Users can choose the power supply that fits their testing requirements perfectly. In combination with the IT-E501 power dissipater unit, the current sinking capacity of IT6500C can be 100%, 200%, 300% and the power sinking up to 300% of the Sourcing capability. As a high-speed two-quadrant power supply, IT6500C (1800W-30kW) series has a priority function so as to realize high-speed current transition between power supply mode and electronic load mode, to achieve fast switching between sourcing and sinking current, even can achieve seamless switching under certain conditions. IT6512, IT6513 and IT6500C series power supplies provide built-in DIN40839 and ISO-16750-2 testing curves, support solar panel I-V curve simulation function.

* The above specifications are subject to change without prior notice.

Product Features

♦ Support multiple power supplies paralleling in Master-Slave mode and ensures each power supply equally shares the load current. Extension capacity is up to 30kW output.

♦ Support up & down speed independently setting in different operation modes (Power supply: CV/CC/CP modes, Electronic load: CC/CP modes).
♦ Adjustable rising and falling time
♦ Two-quadrant current output, fast switching between quadrants - seamless switching, suitable for battery rapid charging/discharging test *1 *3*5
♦ Combined with IT-E501 power dissipater unit, can meet discharge test demand up to 90kW *1
♦ Built-in DIN 40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO2184 standard voltage curve for automobile power net *2
♦ Solar panel I-V curve simulation function *4
♦ LIST mode programming
 Variable output impendence function *1
♦ Low ripple and low noise
♦ High resolution and high accuracy
♦ Support multiple protections (Power Supply: OVP,OCP,OPP; Electronic Load: OCP,OPP,OTP, Vsense Reverse protection, turn-off protection, input under voltage protection
♦ Remote sense function
♦ Analog control interfaces
♦ Built-in USB/RS232/CAN/GPIB/LAN interfaces
*1 Limit IT6500C series have this function
*2  Limit IT6500C series have this function, IT6512 and IT6513 are built-in DIN 40839, ISO-16750-2
*3 To achieve perfect battery charge & discharge function, please purchase IT9320 charge & discharge test system software
*4 Optional SAS1000 software
*5 Fast switching can be achieved under certain conditions, seamless switching function is unable to realize


Specification

Functions and Advantages

Seamless current switching between two quadrants

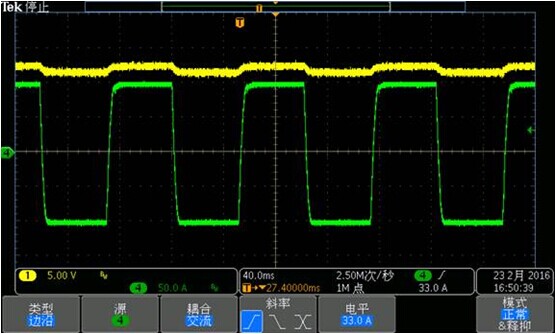

IT6500 series two-quadrant power supply is not simply a combination of a power supply and electronic load, but it is a continuous source and load. For traditional two-quadrant power supply, there will be a short jump and discontinuity across positive and negative currents. As a high-speed two-quadrant power supply, IT6500C (1800W-30KW) series has Loop-Mode function so as to realize high-speed current transition between power supply mode and electronic load mode, to achieve fast switching between sourcing and sinking current,even can achieve seamless switching under certain conditions, thus avoiding overshoot of voltage or current. That enables it to  be widely used in energy storage device testing, such as batteries, battery encapsulation and battery protection panel etc.




With the power dissipater unit, loading capability is expanded
IT6500C series can be used as both a power supply and an electronic load. It greatly enlarges the current sinking range of the power supplies. It enables sinking of current and power, thus it can be applied to applications requiring fast current sink test and batteries charging/discharging test. Each IT-E500 series power dissipater unit provides up to 3kW power sinking capability for the IT6500C series power supply. To meet higher power discharging test demand, multiple power dissipater units’ can be paralleled. The IT-E500 series power dissipater unit can extend the current sinking capability to 100%, 200%, 300% of the source range and the power sinking capability up to 300% of the Power sourcing capability. (Max. Power sink is 90kW). Meeting demanding requirements of high power discharging test.





Fast curve changing without overshoot CC & CV Priority Function

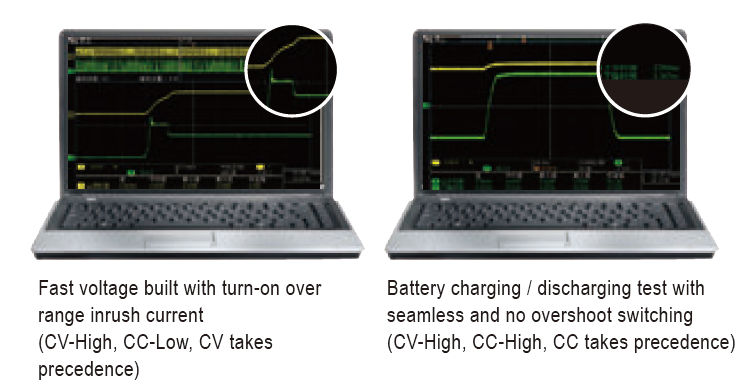

To conquer the demanding testing requirements existing for a long time in various applications, ITECH developed an innovative industry-leading CV & CC priority concept. The IT6500 is available for high-speed test applications with-out overshoot. Users can choose the desired output mode. Voltage high-speed mode or current no overshoot mode by choosing the loop response speed and loop operation mode. It is suitable for high-power integrated circuit test, charging / discharging test, solar array simulation and the transient simulation / characteristic of automotive electronics.




Options & Accessories

·

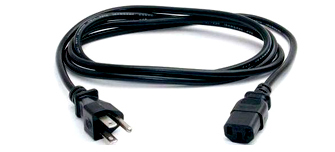

AC power cord (accessory)

AC power cord (accessory)

·

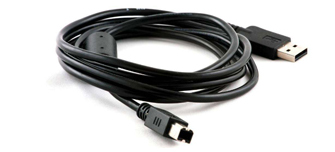

USB

For USB port communication

·

CD (accessory)

With user manual and communica...

·

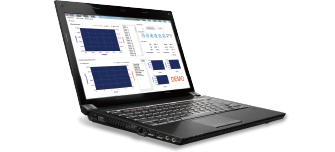

SAS1000 Solar Array Simulation...

Adopt IT6500C series equipped ...

·

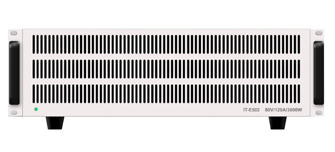

IT-E500 power dissipater

Provide greater discharge capa...

·

IT-E31220-OO (Optional)

120A/2m/round terminal, a pair...

·

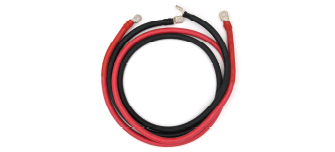

IT-E30615-OO (Optional)

60A/1.5m/round terminal, a pai...

·

IT-E32420-OO (Optional)

240A/2m/round terminal, a pair...

·

IT-E32410-OO (Optional)

240A/1m/round terminal, a pair...

·

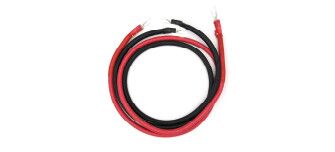

IT-E33620-OO (Optional)

360A/2m/round terminal, a pair...

·

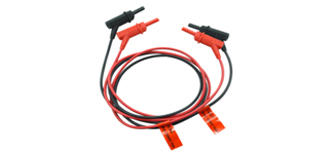

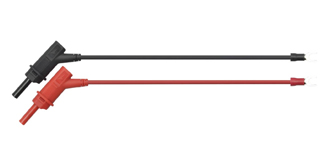

IT-E30110-AB (Optional)

10A/1m/Alligator clip - Banana...

·

IT-E30110-BB (Optional)

10A/1m/Banana plug - Banana pl...

·

IT-E30110-BY (Optional)

10A/1m/Banana plug - Y termina...

·

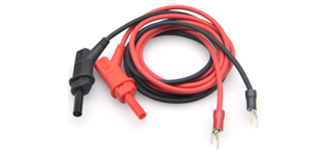

IT-E30312-YY (Optional)
