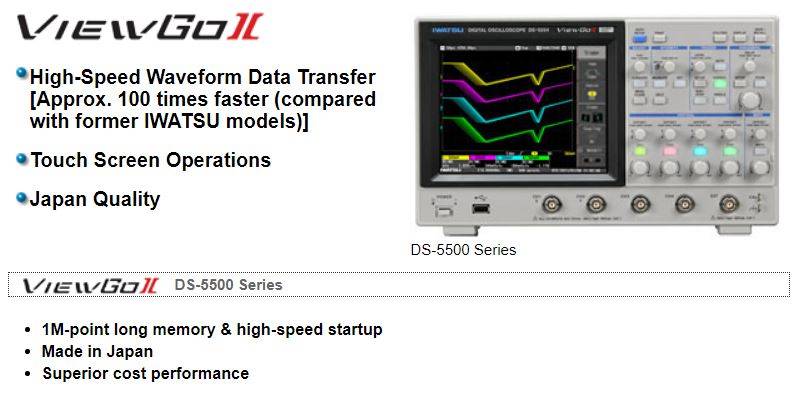

Digital Oscilloscopes DS-5500 SeriesSpecifications

Parameter

DS-5514

DS-5512

DS-5524

DS-5522

DS-5534

DS-5532

DS-5554

DS-5552

Frequency bandwidth(-3dB)

100MHz

200MHz

350MHz

500MHz

Rise time(Typical)

3.5ns

1.75ns

1ns

750ps

Input Channel

4

2

4

2

4

2

4

2

Maximum Sampling Speed

1GS/s

1GS/s(all CHs)/ 2GS/s(Channel combined)

Equivalent Sampling Rate

100GS/s

Peak detect resolution

1ns

Averaging

2 to 256 times

Maximum Memory Length

1Mpts/ch(for all CHs)

Vertical Resolution

8-bit

Vertical
System

Range

2mV/div - 10V/div(1Mohm)

2mV/div - 10V/div(1Mohm),2mV/div - 2V/div(50ohm)

Offset

2mV/div - 50mV/div : +/-1V,50.2mV/div - 500mV/div : +/-10V,502mV/div - 10V/div : +/-100V

DC accuracy

+/- (1.5% + 0.5% of Full Scale)

Maximum Input Voltage

+/-400Vpeak CAT I( 1Mohm)

+/-400Vpeak CAT (1Mohm), 5Vrms( 50ohm)

BW Limit

20MHz

20MHz,100MHz

Input coupling

GND, DC 1Mohm, AC 1Mohm

GND, DC 1Mohm, AC 1Mohm, DC 50ohm

Input Impedance

1Mohm +/-1.0% // 20pF

1Mohm +/-1.0% // 16pF,50ohm +/-1.0%

Probe sense

Automatic - 1:1,10:1,100:1, 1000:1,

Manual - 1:1,5:1,10:1,20:1,50:1,100:1,200:1,500:1,1000:1, 2000:1

Probe (one per channel)

SS-0130R

SS-101R

Timebase

5ns/div - 50s/div

2ns/div - 50s/div

1ns/div - 50s/div

500ps/div - 50s/div

Roll mode

50ms/div - 50s/div100kS/s, max.

Timebase (Clock) accuracy

10ppm

Trigger Function

Edge, Edge ALT, Edge OR, Pulse Count, Pulse Width, Period, Dropout, TV, Pattern OR,NOR,AND, NAND

Trigger
System

TV mode

NTSC, PAL, Custom

Line number select /
Field select

up to 3,000 / 1, 2, 4, 8 fields

Pulse Count

Trigger

1 to 9,999 events

Pulse Width
Trigger

15ns to 50s

Period Trigger

40ns to 50s

Dropout Trigger

50ns to 50s

Pattern Trigger

OR, NOR, AND, NAND

Trigger source /
Status

Input CHs / High , Low , Don't-care

Trigger threshhold
level setting

Individually available for each CH

Trigger Source

Input CHs, Line, EXT(+/-0.5V), EXT10(+/-5.0V)

Trigger Coupling

AC, DC, HF Rej, LF Rej, Noise Rej

Display size/ resolution

7.5inch color TFT-LCD with Touch screen / VGA(640*480pixels)

Display mode

Y-T, XY, XY (triggered)

Vector Display Method

Interpolation on sample points or Dots

Analog persistence mode

Monochrome grayscale or Color Spectrum

Persistence time setting

100ms, 200ms, 500ms, 1s, 2s, 5s, 10s, infinite

Reference waveform memory

5 waveforms

Pannel setting memory

5 settings for Internal memory or USB memory

Parameter measurement

Maximum, Minimum, Peak-Peak, RMS, Cycle RMS, Mean,

Cycle Mean, Top, Base, Top-Base, +Overshoot, -Overshoot,

Tr 20-80%, Tf 80-20%, Tr 10-90%, Tf 90-10%, Freq., Period,

+Pulse count, -Pulse count, +Pulse width, -Pulse width, Duty cycle,

Integral, Skew(+, -), Skew at level

Cursor

Time, Amplitude, Time and Amplitude, Value at cursor

Zoom

Zoom key enable display at individual grid area

Calculation

Addition, Subtraction, Multiplication, FFT(8k points maximum, RECTANGULAR, HANNING, FLATTOP)

Rescaling / Unit conversion

a*x+b(x: input voltage at User defined a and b) / Volt,

Ampere, Watt, degree, unit-less

Replay

Automatic waveform recording upto 2,048 waveforms, History Replayable

Counter

6-digit

Interfaces

USB 2.0(Host&Device), 100-BaseTX LAN,

IEEE488.2 GPIBFactory option: DS-576

Multi Language Help

English, Simplified Chinese, Japanese

AUX Interface

AUX connector for External options

EXT Output(option)

CH1&CH2 output: DS-577, CH1&TRIG output: DS-578

Waveform Data Storage

USB memory for Binary, ASCII, Mathcad,

Calculation(ASCII), Calculation(Mathcad)

Hardcopy Output

Output to USB memory in TIFF, BMP, PNG format

or Output to PictBridge Printers

AC input voltage, Frequency,
Power consumption

90 to 264V AC at 50Hz/60Hz,

90 to 132V AC at 50Hz/60Hz/400Hz, 95VAmax (60W max)

Dimensions / Weight

330(W)*190(H)*124(L) mm / 3.7kg

Performance guaranteed Temperature range

+10deg. to +35deg. (Celsius)

Operation temperature and
humidity / Altitude conditions

0deg. to +40deg. at 5 to 80%(RH<=30deg.),

55%RH or less at 40deg. (non-condensation) / 2,000meter or lower

Storage temperature

-20deg. to +60deg.(Celsius)
