Automatic test can be performed such as property test vs frequency, etc.

§  Temperature conditions up to 20kinds, Excitation conditions upto 40kinds for each DUT(device under test) are available. This means 20x40(=800)kinds of conditions can be programmed for each sample of DUT.

§  Pulse excitation can be controlled with BH analyzer

§  Hard copy of displayed results (JPEG, PNG) and signal waveform data at xxx.csv basis can be extracted to PC memory.

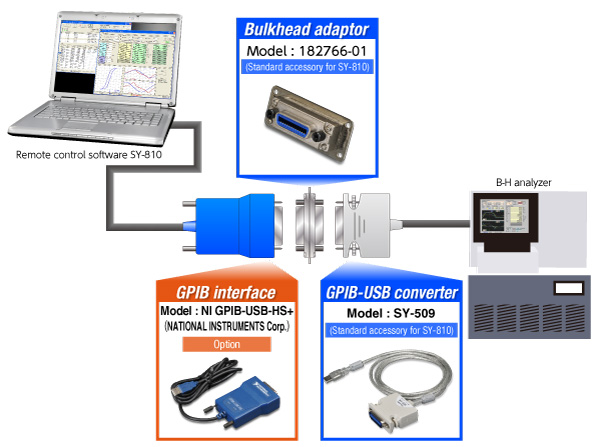

　Contents of SY-810

§  CD (software and operation manual at PDF), GP-IB converter SY-509, Bulkhead adaptor 182766-01 and software license agreement

　Operating PC environments

§  OS: Windows Vista（SP2）/ 7（32bit、64bit）/ 8（32bit/64bit）

§  NET Framework(packed), CPU Pentium133M or above, Memory at 64Mbyte or more, Display resolution at1024x768 or above, USB port x1

*Contact our sales for the most recommended system configurations.
*NI GPIB-USB-HS+ (NATIONAL INSTRUMENTS Corp.) is required for PC interface with SY-8218/SY-8219. PC is not included with this system and supplied by customer.

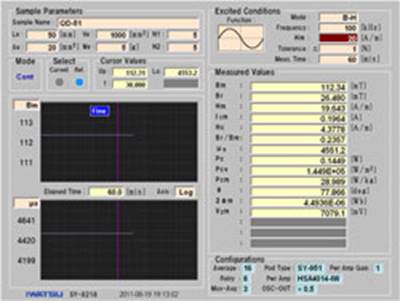

Time-tendency property test can be performed at continuous excitation.

§  Test timeframe at 99,999 minutes (Approx. 70days), max. 60second/test

§  2 kinds of properties can be monitored on display and extracted to memory.

§  Measurement item can be changed during test.

§  Comparison between Reference and test result on the same display

§  Test data at CSV and display hardcopy at JPG/PNG are available.

*Option for BH analyzer
*Implementation of SY-811 on BH analyzers(SY-8218/SY-8219) at the customer end will be returned to our factory for installation and inspection.
