Digital Multimeter VOAC7602

Further Advanced Iwatsu Digital Multimeter

Digital Multimeter VOAC7602



6 -1/2digits
4.3 inch high-resolution LCD screen
The high sampling rate : max.30kS/s




Histogram display

Trend chart display

Temperature

Frequency

Math

Histogram

Trend

Temperature

Frequency

Math


Various of display functions

高解像度液晶モニタ4.3インチ109mm

Using the high-resolution LCD screen, you can view the measured values while watching the average, the maximum and the minimum values. Moreover, VOAC7602 enables you to observe the statistical values while viewing the Trend and the Histogram charts. Other than those above, there are various kinds of combinations of displays available to be shown aside and these can be chosen from many functions, such as LIMIT function, and Analog meter display, which is effective for analog judgment.



画面イメージ

画面イメージ



Real-time value + Maximum value, Minimum value, Average value

Real-time value(ACV+FREQ) + Analog meter display




画面イメージ

画面イメージ



Real-time value + LIMIT function

Real-time value + Analog meter display + LIMIT function




画面イメージ

画面イメージ



Real-time Trend chart display + LIMIT function

Real-time histogram chart display + LIMIT function

Easy-to-understand display screen

Easy-to-use

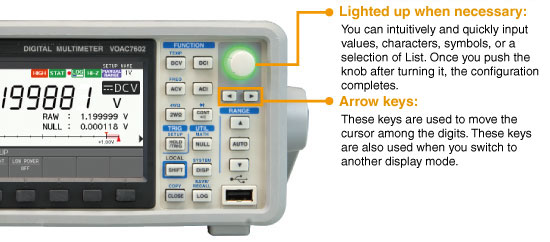

必要なときに光るイルミネーション 設定に必要な数値、文字、記号の入力や、リストの選択がスピーディーに直感的に行えます。ノブを回してプッシュすると設定が確定されます。



Quick saving of log memory on the screen

簡単ハードコピー操作

You can store the log information in USB memories by a simple operation. No difficult settings are required and this is useful when you have to perform a lot of measurement.



Quick start-up

If you store your configurations into internal memory, you can start your measurement immediately as you can bypass setting configurations again.

快速起動イメージ

Large capacity :100k data memory for logging

大容量メモリ保存

Thanks to the large memory, you can store data with timestamps for more than 24 hours even if you measure once a second. The equipment always keeps logging. You won’t miss any of the data.

Digital Multimeter VOAC7602            Function

"BULK mode" 30kS/s (New)

The measurement in the BULK stops the other functions than measurement data acquisition when measurement is done. Therefore, logging can be done while ensuring the sampling rate of up to 30kS/s. The measured data is kept in log memory, and Trend chart and Histogram chart can be displayed by offline browse function. The data can be stored in a memory as well.

30kS/sを保証

Pre-trigger function utilizing log memory effectively (New)

VOAC 7602's bulk mode can stop loading levels of measurement values, LIMIT judgment result, External trigger, etc. , by setting "Stop Event". This triggering can be used in similar way to oscilloscopes' pre-trigger function. You can focus on data taken around when the event occurred. In addition, as log memory has 100k readings, a long time data can be loaded with high resolution at high speed sampling. Moreover, As this multimeter can accept "Stop Event" just after start of the logging, you do not need to wait for the time which inhibits the trigger even if sampling rate is low. So, the loading time will be minimized.

プリトリガ機能

A long time logging is available with long time memory.

VOAC7602 has a large memory, which can store the log for up to 100k points.
Example: Logging more than one day is available when sampling rate is 1 time/sec.

Sampling rate
( samples/s)

1

4

20

100

500

1k

2k

7.5k

15k

30k

Loading time
( h : m : s)

27:46:40

6:56:40

1:23:20

0:16:40

0:03:20

0:01:40

0:00:50

0:00:13

0:00:07

0:00:03

Offline/Histogram chart display, being useful for Yield ratio measurement (New)

Display the data loaded into the log memory in a histogram chart, so that you can measure the yield rate easily by cursor operation.
So far this rate was calculated by PC, this will improve your work efficiency at significant level. The LIMIT  judgment can be performed on site.

ヒストグラム表示画面



The number of times within the ranges specified by cursors, and the ratio will be displayed in percentage figures (%).
Since indexes suitable for the basis such as voltage can be set as x-axis, you intuitively understand the ratio of acceptance/rejection criterion.

Offline-Trend chart display: Temporal alteration of measurement value shown (New)

Besides the display function such as an oscilloscope’s, the function to recalculate the statistical data within the cursor range will help you get the statistical data for the range you need. As you can save the display data in USB memory, this function will improve working efficiency furthermore.

トレンドチャート表示1



トレンドチャート表示2



Highly-improved LIMIT function New)

VOAC7602 can perform the advanced analysis based on the result of LIMIT function, and this will be performed by easy operation. This product gives you clear answers to your most difficult questions such as how many troubles happened, when they happened and so on.

The right figure gives the answer to:

判定機能表示1

"How many troubles happened"



The right figure gives the answer to:

判定機能表示2

"When they happened"

Easy extraction of necessary parts by offline cursor function (New)

カーソル機能1



カーソル機能2

Various kinds of trigger functions to meet market needs

Interval trigger function

トリガ機能1

This function repeats measurement at fixed time interval until such measurement is performed certain times specified in advance.



Trigger delay function

トリガ機能2

This function let you set the delay time from the trigger input to the first data measurement. You can delay the measurement timing of the production facilities and measure the data after the facility become stable.

Digital Multimeter VOAC7602          Specifications



Basic performances

Display

Display digit

Measurement speed

1digits

Full scale 1199999

50S/s
(60S/s Power Freq. at 60Hz)

1digits

Full scale119999

30kS/s

Measurements

DC Voltage

Range

100mV - 1000V

Input impedance

1GΩ or more, or 10MΩ

Input bias current

30pA

AC Voltage

Range

100mV - 750V

Frequency

20Hz - 300kHz

Crest Factor

Less than 5

Input impedance

1MΩ //100pF

AC filter

20Hz, 200Hz

Resistance(2WΩ4WΩ)

Range

100Ω to 100MΩ

DC current

Range

1mA to 3A

AC current

Range

1A,3A

Continuity measurement CONT)

Yes

Diode measurement DIODE)

Frequency measurement FREQ)

3Hz to 300kHz

Temperature measurement TEMP)

Thermocouple TYPE- R, K, T, J ,E) Manual input of

cold junction temperature , RTD (2-wire or 4-wire

Interfaces

Standard

USB2.0

Optional

LAN&RS-232(SC-361) / DIO(SC-362) / GPIB(SC-363)

Functions

Difference operation (NULL)

Yes

Moving average operation

2 - 100 times

Statistical calculation (MAX/MIN/AVG/SDT

Yes

LIMIT judgment

Scaling operation

Decibel operation

Measurement data memory(logging)

100k Readings

Pre-triggering / level triggering

Supported by the latest firmware

Panel setup memory

Internal 10 + USB Storage memory

Panel setup sequence

Internal memory (Optional RS-232 is required)

Analog meter display

Yes

Panel lock function

Interval measurement

Trend chart display

Real Time

Yes

Offline

Supported by the latest firmware

Cursor & Search

Histogram display

Real Time

Yes

Offline

Supported by the latest firmware

Cursor & Search

USB host

Panel setup, measurement data and hard copy can be stored in USB memory

Dimension / Weight

Dimension (mm)

Approx. 225W × 100H × 366DExcluding the protrusion part
Approx. 213W × 88H × 356D (Excluding the protector part

Weight

Approx. 3kg

Protector

Yes

Others

Operating temperature and humidity range

0°C to 50°C (+40°C 80% or less comparable volume water) and no condensing

Storage temperature and humidity range

-20°C to +60°C (+40°C 90% or less comparable volume waterand no condensing

Power supply and Power consumption

AC100V,50/60Hz, less than 21 VA
110V / 220V / 240V(Optional)

Accessories

Test leads, Fuse, CD-ROM Operation manual, Power cord

Digital multimeter VOAC7602         option

Option

SC-361

LAN&RS-232 interface

*Factory option


*This interface SC-361 cannot be used with  SC-363 (GPIB interface).

SC-361 RS232+LAN interface

SC-362

DIO interface

*Factory option

SC-362 DIO interface

SC-363

GPIB interface

*Factory option


*This interface (SC-363) cannot be used with SC-361 (LAN&RS-232 interface).

SC-363 GPIB interface

SC-004

Test lead for high resistance


Shielded cable for high resistance under 100

High resistance test lead SC-004

TKL 90cm BAN(pmk)

4-wire kelvin test lead (4-terminal resistance measurement)


Length : 90cm

4-wire Kelvin test lead (4-terminal resistance measurement cable)

KELVIN: S

IC lead compatible with 0.2 to 0.5 pitch, linear: 0.08mm

KELVIN: M

IC lead 0.5 to 1.0 pitch compatible, linear: 0.2 mm

KELVIN: L

IC lead 0.8~2.54 pitch compatible, linear: 0.3mm

4-pin resistance measurement micro clip

(MECHANO ELECTRONIC. INC.)

4-terminal resistance measurement probe

SC-0107

Sheath type K thermocouple (Type-K)


* You should put cold junction temperature by hand with VOAC7602.

* This cannot be used with VOAC7502.

Sheath type thermocouple (Type-K) SC-0107

SC-0116

Surface thermocouple (Type-K)


* You should put cold junction temperature by hand with VOAC7602.

* This cannot be used with VOAC7502.

Stationary surface type thermocouple (Type-K) SC-0116

SC-020

Test lead


Standard attachment

Red : 1

Black : 1

Test lead

SC-026

Arrow clip for SC-020


AC30V/DC60V 3A

Test Lead SC-020 Dedicated Arrow Clip SC-026

SC-023

Alligator clip H for SC-020


Pressure resistance : 600V/10A, CE

Alligator clip H SC-023 for test lead SC-020

SC-028

Current clamp probe


DC180A, AC130A

Sensitivity : AC/DC/10mV/A

Current clamp probe SC-028

SC-525

USB-RS converter


Conversion cable for RS-232 & USB

SC-525
