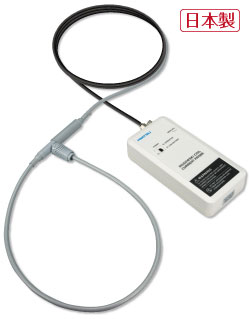

Rogowski coil current probe

For the first time in the industry, a total of 46 models have been added to the lineup with a frequency of 100 MHz, ultra-fine £X1 mm, and high temperature of 150º!

Features

By selecting the coil wire diameter and coil length, it can be used for various current measurement targets from narrow parts such as between IC leads to large bus bars (bus bars).

Range of application

Switching current waveform and pulse response characteristics of power devices

Current measurements of inverter system

AC current measurements (at large DC offset)

Impulse high current measurements

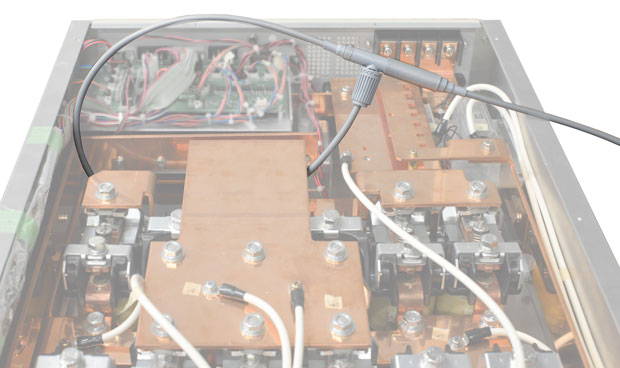

Bus Bar high current measurements

Features and main specifications of each series

Type name

appearance

SS-680
¡@series

Maximum peak current: 600A (for SS-685)

Maximum frequency band (-3dB): 100MHz

Withstand voltage: 1.2kV

Sensor cable length: 1.5m

Sensor part Operating temperature range -10¢J to 70¢J

SS-660
¡@series

Coil wire diameter: 1mm (max)

Maximum peak current: 600A (in case of SS-665)

Maximum frequency band (-3dB): 30MHz

Withstand voltage: 600V

Sensor cable length: 1.5m

Sensor part Operating temperature range -40¢J to 125¢J

Base model:
SS-660 series
¡´High voltage model
(600V¡÷1.2kV)

Coil wire diameter: 1.2mm (max)

Maximum peak current: 600A

Maximum frequency band (-3dB): 30MHz

Withstand voltage: 1.2kV

Sensor cable length: 1.5m

Sensor part Operating temperature range -40¢J to 125¢J

NEW
SS-280A-H
¡@series

Coil wire diameter: 1.7mm (max)

Maximum peak current: 12kA (for SS-289A)

Maximum frequency band (-3dB): 30MHz

Withstand voltage: 1.2kV

Sensor cable length: 1.5m

Sensor part Operating temperature range -40¢J-150¢J

SS-280A
¡@series

Coil wire diameter: 1.7mm (max)

Maximum peak current: 12kA (for SS-289A)

Maximum frequency band (-3dB): 30MHz

Withstand voltage: 1.2kV

Sensor cable length: 1.5m
(3m available: contact us)

Sensor part Operating temperature range -40¢J to 125¢J

SS-620S
series

Coil wire diameter: 3mm (maximum)
Maximum peak current: 12kA
Maximum frequency band (-3dB):
	Coil length 100mm type: 25MHz
Withstand voltage: 5kV
Sensor cable length: 3m
Sensor part Operating temperature range -40¢J to 125¢J

SS-620M
¡@series

Coil wire diameter: 3mm (maximum) (2.5mm available: please contact us)
Maximum peak current: 12kA
Maximum frequency band (-3dB):
	Coil length 200mm type: 20MHz
Withstand voltage: 5kV
Sensor cable length: 3m
Sensor part Operating temperature range -40¢J to 125¢J

SS-290S
¡@series

Coil wire diameter: 8.5mm (max)
Maximum peak current: 12kA
Maximum frequency band (-3dB)
	Coil length 300mm type: 20MHz
Withstand voltage: 10kV
Sensor cable length: 3m
Sensor part Operating temperature range -40¢J to 125¢J

SS-290L
¡@series

Maximum peak current: 12kA (120kA available: please contact us)
Maximum frequency band (-3dB)
	Coil length 700 mm type: 10 MHz
Withstand voltage: 10kV
Sensor cable length: 3m
Sensor part Operating temperature range -40¢J to 125¢J
