High voltage differential

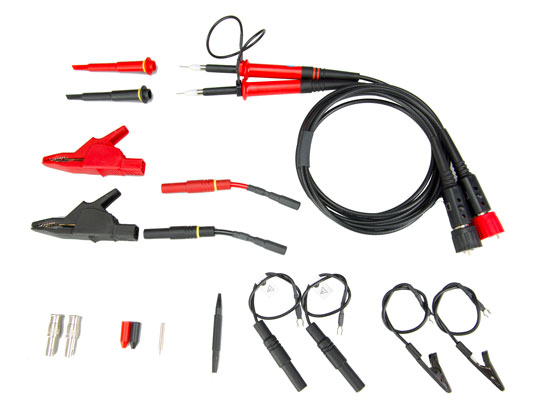

Paired probe : PDD series (PMK GmbH - Germany)
|
|
Specifications
|
Model |
Attenuation |
input Impedance |
Rise time |
Frequency bandwidth |
Cable length |
Oscilloscope input capacity |
Max. Input Voltage |
|
|
R |
C |
|||||||
|
PDD 2011 |
10:1 |
10 |
<12 |
1.75 |
200 |
1.2 |
10 - 50 |
600(DC+ACpeak) |
|
PDD 2012 |
10:1 |
10 |
<14.5 |
2.7 |
130 |
2 |
10 - 50 |
600(DC+ACpeak) |
|
PDD 2013 |
10:1 |
10 |
- |
- |
60 |
3 |
10 - 50 |
600(DC+ACpeak) |
|
PDD 4011A |
10:1 |
5 |
<11 |
0.9 |
400 |
1.2 |
6 - 20 |
600(DC+ACpeak) |
|
PDD 4012A |
10:1 |
5 |
typ.12 |
1.4 |
250 |
2 |
6 - 20 |
600(DC+ACpeak) |
|
Model |
Attenuation |
input Impedance |
Rise time |
Frequency bandwidth |
Cable length |
Oscilloscope input capacity |
Max. Input Voltage(kV) |
|||
|
R |
C |
CAT II AC rms |
VDC+ |
Impulse Peak |
||||||
|
PDD 4002-3 |
x1000 |
100 |
<2.5 |
<3.5 |
100 |
3 |
10 - 50 |
14.0 |
20.0 |
40.0 |
|
PDD 4161-L |
x100 |
50 |
<6 |
<0.95 |
380 |
1 |
10 - 50 |
2.8 |
4.0 |
6.0 |
|
PDD 4162-L |
x100 |
50 |
<6.5 |
<1.2 |
300 |
2 |
10 - 50 |
2.8 |
4.0 |
6.0 |
|
PDD 4163-L |
x100 |
50 |
<7 |
<2.4 |
150 |
3 |
10 - 55 |
2.8 |
4.0 |
6.0 |
|
PDDS 4962-L |
x1000 |
50 |
<6.5 |
<0.9 |
400 |
2 |
10 - 50 |
2.8 |
4.0 |
6.0 |
|
PDDS 4963-L |
x1000 |
50 |
<7 |
1.4 |
250 |
3 |
10 - 55 |
2.8 |
4.0 |
6.0 |
