DG1000Z Series Function / Arbitary Waveform Generator

DG1000Z series function/arbitrary waveform generator is a multi-functional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter.As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production tests etc.
Features and Benefits
    • Innovative SiFi (Signal Fidelity): generate arb waveform point-by-point,restore signal distortionless, precisely adjustable sample rate and low jitter (200ps)
    • Arbitrary waveform memory: 8Mpts (standard), 16Mpts (optional)
    • Standard 2 full functional channels can be used as two independent generators
    • ±1ppm frequency stability, -125dBc/Hz phase noise
    • Built-in 8 orders harmonics generator
    • Built-in 7 digits/s full function frequency counter with 200MHz bandwidth
    • Up to 160 built-in waveforms
    • 200MSa/s sample rate, 14bits vertical resolution
    • Convenient arbitrary waveform editing interface
    • Versatile modulation types: AM, FM, PM, ASK, FSK, PSK and PWM
    • Standard waveform summing function
    • Standard channel track function
    • Standard interfaces: USB Host& Device, LAN(LXI Core Device 2011)
    • 3.5 inches TFT color display

Advanced functions

•Large screen display , novel and beautiful appearance

•Standard 2 full functional channels

Arbitrary waveform function with innovative SiFi technology

•Up to 160 built-in waveforms

Burst function

•Multiple analog and digital modulations

Sweep function

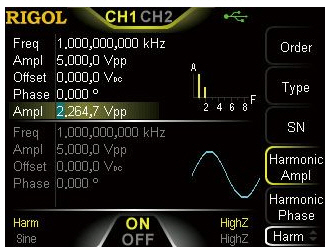

•Standard harmonic generator

Waveform summing function

•Standard 7 digits/s full function frequency counter with 200MHz bandwidth

Channels and system setting

•In line with LXI Core Device 2011

File Management Function
