DG4162 160 MHz, 500MSa/s, 2 Ch, 14bits, 16k points, Function / Arbitrary Waveform Generator
DG4102 100 MHz, 500MSa/s, 2 Ch, 14bits, 16k points, Function / Arbitrary Waveform Generator
DG4062 60 MHz, 500MSa/s, 2 Ch, 14bits, 16k points, Function / Arbitrary Waveform Generator

Contact

DG4000 Series Function / Arbitrary Waveform Generator

DG4000 series is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter. All of the 3 models have two channels with complete equivalent functions and precisely phase adjustable, they are the real dual-channel signal generator. DG4000, adopting the Direct Digital Synthesizer (DDS) technology, can provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout bring users exceptional experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users.
Features and Benefits
  • Standard 2 full functional channels
  • 500 MSa/s sample rate,14 bits vertical resolution
  • 2ppm high frequency stability, -115dBc/Hz low phase noise
  • Arbitrary waveform function with up to 150 built-in waveforms
  • Versatile analog and digital modulation functions(AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK,PWM)
  • Build-in high precision 200MHz BW frequency counter
  • Up to 16 orders Harmonic generation function
  • 7 inch color LCD(800X480 pixels)

Advanced functions

Large screen display , novel and beautiful appearance

Standard 2 identical channels with frequency and phase coupling

Arbitrary waveform function and built-in 150 waveform

Abundant analog and digital modulation functions

Various Sweep modes

Noise and Burst modes

Up to 16 orders customized Harmonic generation function

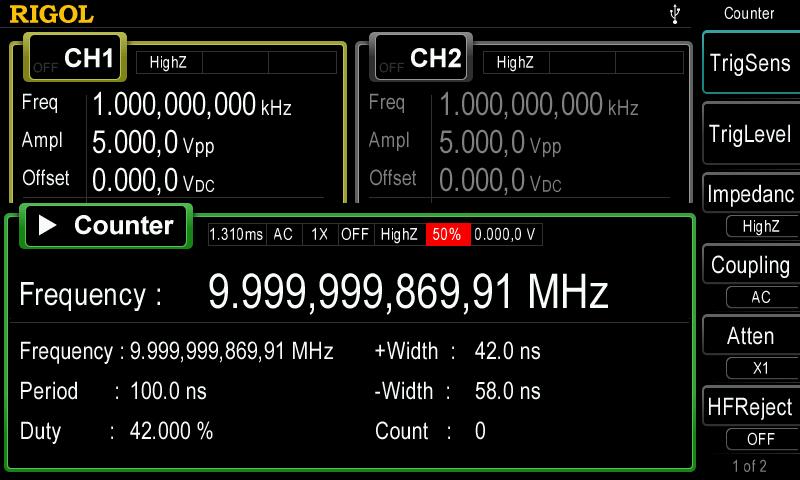

Standard high resolution counter function

The statistic analysis function of counter

Abundant interface Compact size
