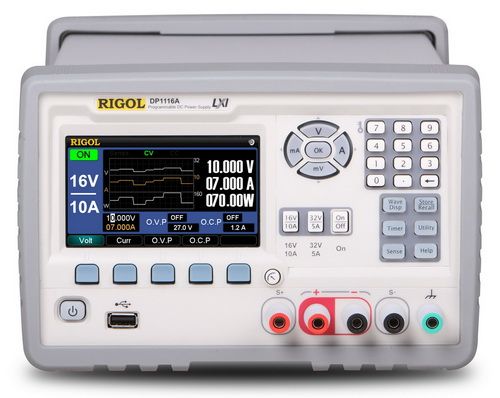

DP1116A Programmable DC Power Supply
|
DP1116A Programmable DC Power Supply
DP1116A is a single channel Programmable DC Power Supply with up to 160W power and two scales output. The excellent performance provided by this unit ensures a more pure and stable output from itself. Besides, the friendly, clear user interface and a variety of configuration interfaces as well as plenty of standard interfaces bring you more conveniences in actual use.
|
Features and Benefits
- 4.3 inch large True Color LCD Display with 480x272 high resolution:Displays multiple parameters and state graph simultaneously
- Single output ,dual ranges,160W power with the remote sense capability
- Low ripples noise: < 350 μVrms/3 mVpp
- Excellent line regulation rate: < 0.01% + 2 mV (voltage), < 0.01% + 250 μA (current)
- Excellent load regulation rate: < 0.01% + 2 mV (voltage), < 0.005% + 250 μA (current)
- Fast Transient Response Time:<50μs
- Overvoltage and Overcurrent protection functions
- Two-level overtemperature protection function
- Store and recall system setups
- Supports up to 100 groups of Timing settings

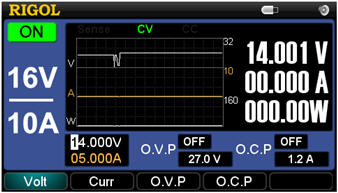

- Real time V/A/W waveform display mode : dial plates with pointer and V/A/W values
- Provides the classical display mode：dial plates with pointer and V/A/W values
- On-line help,Chinese & English interface and input
- Comprehensive Connectivity and Remote Control Interface:USB Device, USB Host, LAN and GPIB (IEEE-488)
- Support USB flash device storage
- Support remote control via SCPI commands
- Conform to LXI-C class instrument standards (version 1.2)
Advanced functions
4.3-inch 16M true color TFT LCD screen

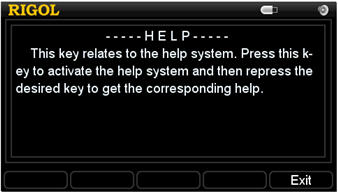

Multi-language built-in help

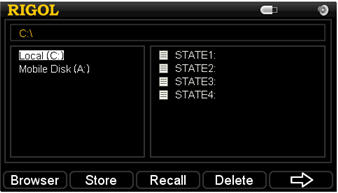

U disk storage system
|

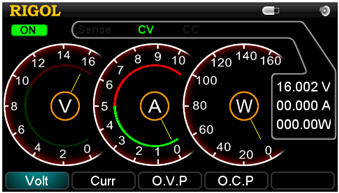

Dial and pointer display mode

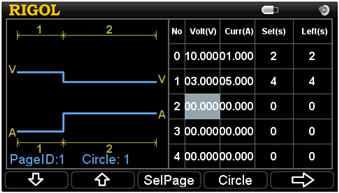

Timing output settings up to 100 group

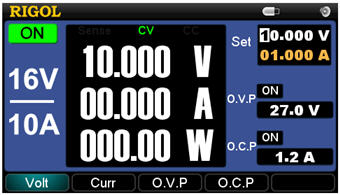

Real time V/A/W display
|
|
|
