DC to 10MHz, High Speed and Broad Range Maximum 300Vp-p high output voltage plus, minus, source and sink operation are available
HSA series is a power amplifier which has high speed, broad band (DC to max.10MHz) , and the capability of supplying high voltage and high power. DC+ / DC- signal is variable continuously with wide output range of maximum 300Vp-p without switching. Furthermore, as Four-quadrant output is possible, source mode(providing a power to load from a power amplifier in coincidence of voltage polarity and current polarity as normal amplifier) and sink mode (Sinking a power from load to power amplifier in reverse current) operation are available. Therefore, It is possible to drive smoothly a capacitive load and an inductive load like a piezo electric component, a solenoid and others.

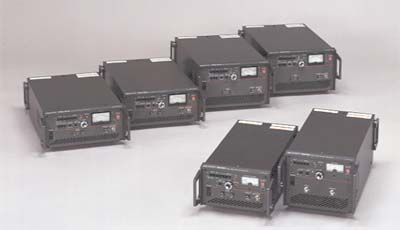

6 difference models concerning frequency range, output voltage and output current are available as HSA series.

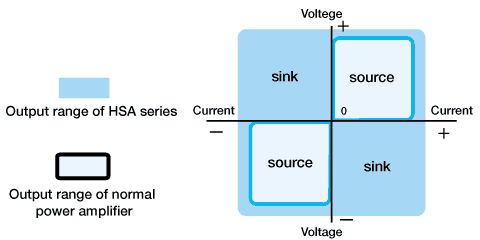

Operation region of HSA seiries (Four-quadrant operation)

Features

High speed, broad band and high slew rate
Frequency range is DC to max.10MHz. Slew rate is max.5000V/µ s.
A fast rise time pulse signal and a complicated waveform signal can be amplified with a high fidelity.

High voltage output
Max. output voltage is 300Vp-p. Possible to drive piezo actuators and display devices by a big margin.

4-quadrant operation ( bipolar output )

Available for output plus/minus of voltage and current freely.

Changing of plus/minus polarity continuously without switching.
Excellent step response
Slew rate which is important when large amplitude output is required, is maximum 5000V/µ s.
Reproduce a signal in high fidelity by good response for high speed repetitive and high speed transient phenomenon signal.

Possible to get a clean waveform of few overshoot and ringing.

Two inputs are provided
Input is A and B of dual inputs. One touch operation for addition and input change.

DC bias
Equipped with DC bias function enabling to add DC to the output.

Low output impedance
Enable to get excellent response in capacitive and inductive load.

Function of output range shift
Equipped with the range shift function which is able to change output range.

Others
Equipped with DC offset adjustment function, protection circuit, Monitor meter & monitor output, output ON/OFF switch and others.

* The above mentioned functions are not equipped with some model.
Please refer to the specifications for the detail functions and the comparison of each model.

Applications

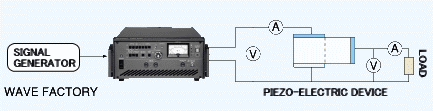

Example of a driving for piezo-electric devices which is used for piezo inverter, piezo actuator and etc.
As HSA series have a very low output impedance, good step response is obtained against large capacitance of piezo-electric devices.

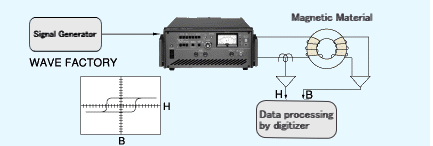

Example of magnetized devices for B-H curve measuring of high frequency magnetic materials
As HSA series have a flat and a wide frequency response and a high stability against inductive loads, high repeatability data is obtained with no influence of loads.

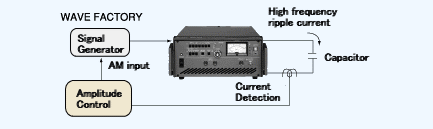

Example of a withstand ripple test for electric capacitors using a switching power supply.
HSA series has not only bias function but also a stable operation against large capacitor loads. It is not caused a difference between a maximum charge current and a maximum discharge current for stable operation against large capacitor loads and symmetry of operation area.

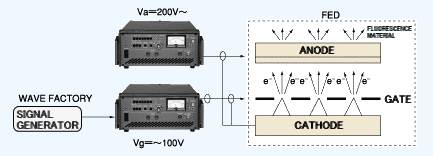

Example of vibration test for flat display panels of FED, EL, LCD and etc..
This test is required a high voltage and a high speed rise time for capacitive load. Wide output voltage range and a high slew rate of 5000V/µs of HSA series is useful for this application.

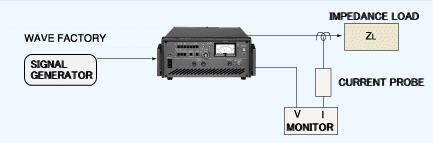

HSA series is suitable for a power amplifier of signal generators.
It is possible to provide a stable power against inductive and capacitive loads with wide frequency range , high output voltage and low output impedance.

Driving for ultra sonic motor Research of IC card
Testing for semiconductor devices Bioelectronics
Chemical electronics

Selecion Guide


HSA4011
HSA4012
HSA4014
HSA4051
HSA4052
HSA4101
Frequency band
DC to 1MHz
DC to 500kHz
DC to 10MHz
Outut voltage
150Vp-p
300Vp-p
142Vp-p
Output current
2.82Ap-p
5.66Ap-p
11.3Ap-p
2.83Ap-p
5.66Ap-p
2.8Ap-p
Slew rate
600V/µ s
400V/µ s
450V/µ s
5000V/µ s

Specifications

Operating area
: For DC ( including AC at 1Hz or less )
or the mean value of AC.



: For the peak value of AC at 40Hz or more.
Values of Vo and Io
Model Vo
Io
HSA4011 100V
0.75A
HSA4012 1.0A
HSA4014 2.0A
HSA4051 200V 0.5A
HSA4052 1.0A

For the +125V to -25V range of the HSA4012 and HSA4014, and the +250V to -50V range of the HSA4051 and HSA4052.
For the ¡Ó75V range of the HSA4012 and HSA4014, and the ¡Ó150V range of the HSA4051 and HSA4052, and output of HSA4011. (HSA4011 applies to a dotted line portion.)
For the +25V to -125V range of the HSA4012 and HSA4014, and the +50V to -250V range of the HSA4051 and HSA4052,

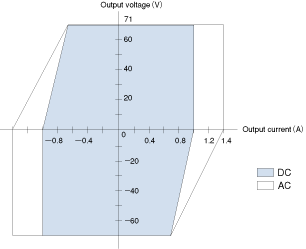

For the HSA4104
*AC means alternating current signal of 40Hz to 100kHz.
In case of pulse signal, the pulse width is 25ms or less.
