Programmable AC/DC Power Source

KP3000S/KP3000GS


standard to powerfully support various tests and measurements.

Stable AC/DC Output for Optimal Performance.
For R&D, for production lines, for built-in ATE systems...

kp3000s

Programmable AC/DC Power Source KP3000GS is a multifunction power source, with three output modes, AC, DC, and AC+DC for wide applications.
High degree of output control ensures constant high stability for various types of loads. Various functions enable improved testing efficiency and automation as well as increased operability.
For production lines manufacturing household electrical appliances in ever larger sizes, for mixed lines composed of both AC and DC equipment, and for testing of DC-DC converters, this unit provides 3 kVA/3 kW power at a reasonable price.

KP3000S (Foot type)

*

AC/DC power source main specifications

ball

AC: Single-phase 3 kVA
DC: 3 kW

ball

AC: 0 to 155 V / 310 V
DC: -220 V to +220 V / -440 V to +440 V

ball

AC: 30 A (100 Vrms) / 15 A (200 Vrms)
DC: 30 A (100 Vdc) / 15 A (200 Vdc)

ball

Peak current: 4 times of maximum current

ball

Output Waveform: Sine , arbitrary wave, clipped sine

*

Functions for various applications

ball

Measurement functions

ball

Current limiter (peak value and rms value)

ball

Remote sensing, AGC, Auto Cal

ball

Sequence function

ball

Simulation function (AC line simulation)

*

Various interfaces

ball

RS-232, USB, GPIB/LAN*, external control I/O

* GPIB or LAN should be specified when you order (LAN is not CE certified)

*

Configuration of Polyphase System ---- KP3000S

*

kp3000s

By connecting multiple KP3000Ss*, a polyphase system can be configured. (KP3000S only)

- Single-phase 6 kVA (2 cabinets)
- Three-phase 9 kVA (3 cabinets)

*Using an optional system cable;
 PA-001-1720: for 1P3W
 PA-001-1721: for 3P4W

3-phase 9kVA System

*

Multifunctional Single-phase model ---- KP3000GS

*

kp3000s

The sequence and simulation function, GPIB/LAN, and external signal inputs (EXT and ADD) are included as standard.

KP3000GS

*

Stable Output

*

*Low distortion *Low output noise *4 times the maximum current

Low distortion, low noise, and stable output are achieved. This power source can supply stable power to various types of loads such as inductive and capacitive loads for low power-factor loads such as equipment with large-capacity noise filters and large power output transformers.
Also, with its high-quality waveform output, this unit can be used as an AC stabilized power source for precision measurements such as the power consumption and standby power of electronic equipment.

Example of output waveform

Example of output waveform
(Capacitive load 1000 µF)

*

Variable Current limiter Function

*

*Current RMS value *Positive/negative current peak value

Output current limiting can be set with positive and negative peak values and effective value.
After the activation of the limiter, the output can be automatically restored or turned off after a set time.
This function is effective for limiting the rush current of motors,large- capacity capacitors, etc. and protecting against abnormal current caused when prototype operations fail.

???????

Peak value setting

top of this page

*

Various Types of Output

*

*AC mode *DC mode *AC + DC mode

With AC 3 kVA, full-power 3kW output is also available for DC. The capacity is not reduced in DC mode. Since the AC+DC mode is also available, this power source can be used for a variety of applications.
A high S/N ratio is achieved in each mode. Use of the current limiter function in DC mode enables the high performance use of the unit as a DC power source. In addition, in AC+DC mode, simulations can be performed in which the DC component is generated temporarily, such as a sudden change in voltage.

100 V range

200 V range

Resolution

AC

Output voltage

0 V to 155 V

0 V to 310 V

0.1 V

Max. current

3 0A

15 A

Frequency

AC: 40 Hz to 550 Hz, AC+DC: 1 Hz to 550 Hz

0.1 Hz

DC

Output voltage

-220 V to +220 V

-440 V to +440 V

0.1 V

Max. current

30 A

15 A

*

Output Voltage Correction

*

There are cases where a voltage drop occurs at the load end due to wiring. The KP3000S/ KP3000GS are equipped with functions to always supply the set voltage.

*Remote Sensing

Switches the voltage detection point used for measurement and output voltage correction to either output terminal or sensing input terminal. Output is corrected by using this together with AGC and Auto Cal.

* AGC (Automatic Gain Control)

This function performs continuous correction to ensure equality between the RMS values of the detection point voltage and the output voltage setting value. Even if the load fluctuates, correction is performed automatically to maintain the same value as the setting value.

*Auto Cal (Auto Calibration)

Each time Auto Cal is turned on, this function measures the detection point voltage and performs correction to ensure that the output voltage RMS value is equal to the voltage setting value.

top of this page

*

Output Waveform

*

*Sine wave *Clipped sine wave*Arbitrary waveform

In addition to sine waves, clipped sine waves and arbitrary waves can be output. A power source test is supported that can simulate a fault in a commercial line.
A clipped sine wave can be set with a crest factor or clipping ratio. An arbitrary wave can be easily created by using the optional control software and can be saved for reuse in the main unit memory through an external interface or in USB memory.

Clipped sine wave
Clipped sine wave

Arbitrary waveform
Arbitrary waveform

*

Measurement Function

*

Abundant measurement functions comparable to those of a wattmeter are provided.
Three measurement values can be selected for enlarged display to improve working efficiency in production lines.

*Measurement items

Voltage (rms value, average DC value, peak value), Current (rms value,
average DC value, peak value, peak hold value), Power (active power,
apparent power, reactive power), Load power factor, Crest factor,
Sync frequency, Harmonic current (up to 40th order), CO2 emissions

measurement functions

top of this page

*

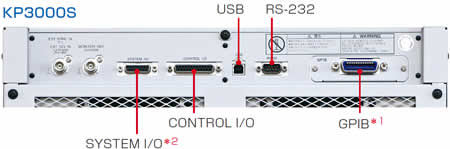

Interface / External Control I/O

*

Interfaces and an external control I/O provide support for system integration and automation.

*Interfaces

RS-232, USB, GPIB/LAN *1

*External control I/O

Control input:
output on/off, sequence control, memory recall (basic setting memory, sequence, simulation)
Status output:
power on/off, output on/off, protection operation, limiter operation, output range, step synchronization of sequence and simulation, etc.

interface


*1
GPIB or LAN should be specified when you order (LAN is not CE certified)
*2 KP3000S only

*

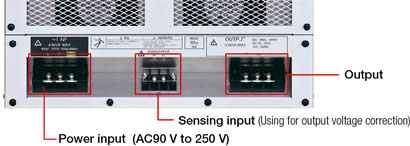

Power Supply Input Flexibility

*

This power source can be used regardless of the power supply environment.

????

top of this page

*

Sequence

*

Programming of various test patterns such as test repetition, combinations of complex test conditions, and long-term testing enable automated test sequences. Power source tests for each destination can be performed efficiently. When purchased with the optional control software, this power source can be freely programmed with very long and complex output patterns

Sequence

  • Number of steps: max. 255 (in 1 sequence)
  • Setting items:
    step time, output range, AC/DC mode, DC voltage, AC voltage, frequency, waveform, start phase, stop phase, phase angle, step termination, jump count, etc.
  • Sequence control: start, stop, hold, resume, branch 1, branch 2
  • Number of memories: 5 (nonvolatile)

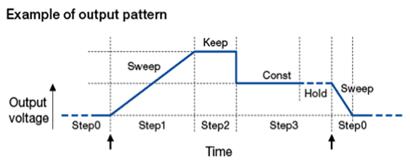

Example of output pattern

top of this page

*

Simulation

*

Simulates a problem in the power AC line such as blackout, voltage rise, voltage drop, abrupt phase changes, or abrupt frequency change, thereby enabling all types of AC line simulation such as prototype evaluation and product inspection.
When purchased with the optional control software, this power source can be easily programmed with various test conditions.

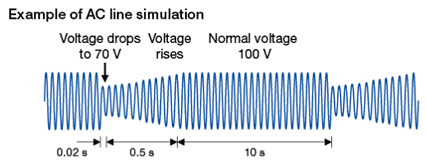

AC line simulation

  • Number of steps: 6 (Initial, Normal 1, Trans 1, Abnormal, Trans 2, Normal 2)
  • Setting items:
    step time, output range, AC voltage, frequency, start phase, stop phase, trigger output, etc.
  • Waveform: sine wave
  • Number of memories: 5 (nonvolatile)

?????????
