Technology

Newly developed CCD (Charge-Coupled Device) scan converter tube
The scan converter tube is a mechanically reliable and extremely durable high-speed storage tube based on our advanced CRT technology. Featuring a simple design much less complex than that of a conventional oscilloscope CRT used for observation, this scan converter features a CCD (charge-coupled device) that can read waveform information drawn on the screen at any sweep rate directly via an OFP (Optical Fiber Plate).

CCD scan converter tube

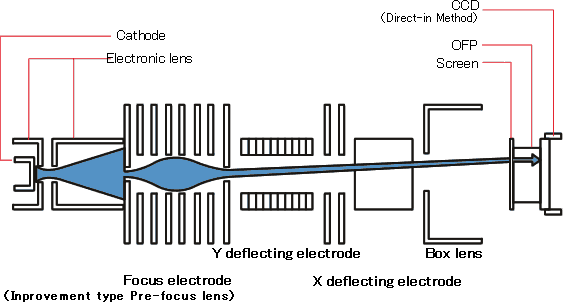

Sectional Plan

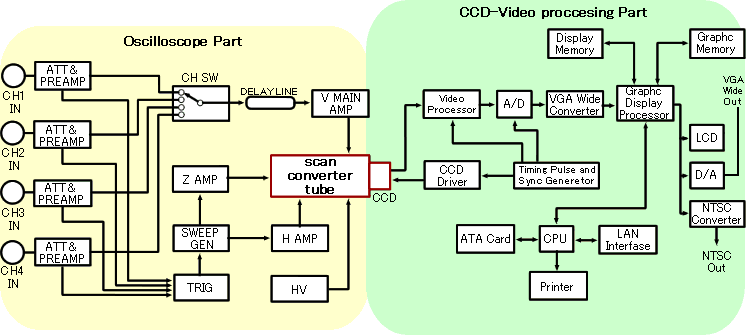

Block Diagram
