| Video signal | |||

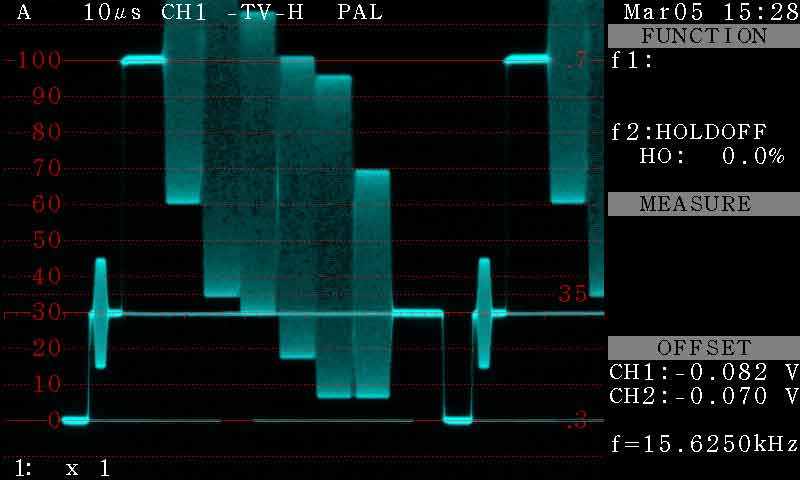

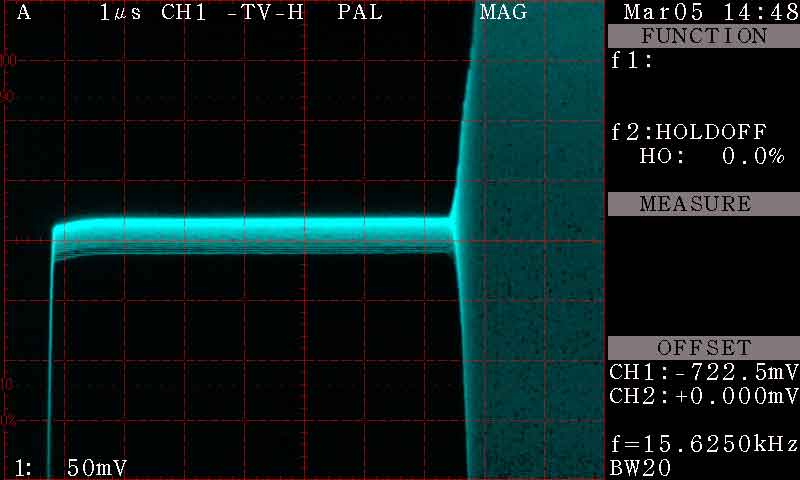

| TS-80000 Series displays details
of video signal accurately. It can clearly shows slow repetition video signal details with ultra-high brightness in persistence function. The TS-80000 Series has suitable functions for video signal such as TV trigger including HD-TV, two kinds of Video scale, TV clamp, 4 field selector and dual delay etc |
|||
|
|
|
|
|
| * TV1, TV2 and custom graticule are selectable | |||
|
|
|||

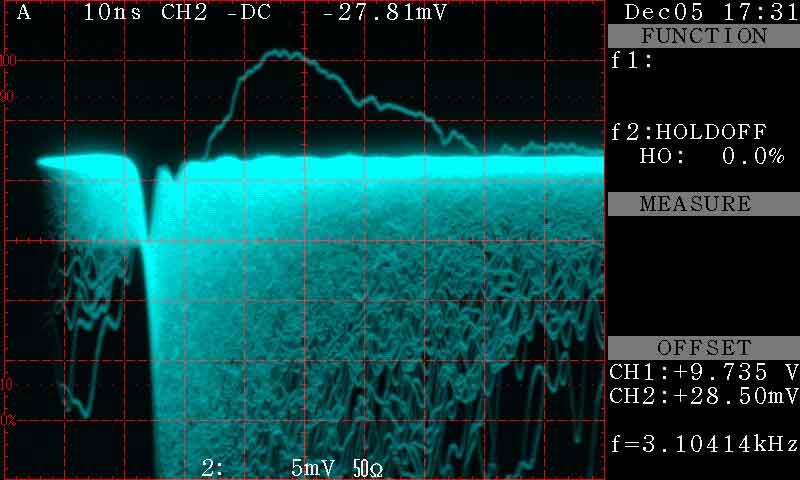

| Photo multiplier tube | |||
| Output signal voltage
variation of Photo multiplier tube. The TS-80000 Series can display some of irregular signals with slight brightness difference. |
|||
|
|
|
||
|
|
|||
| Blue laser | |||

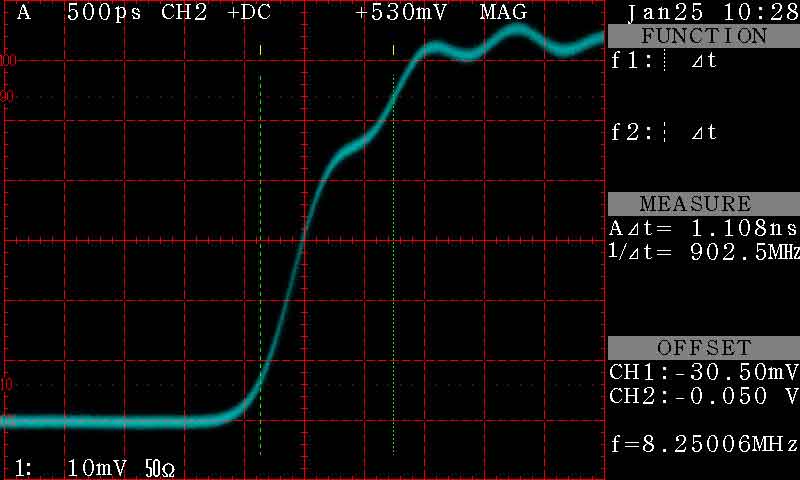

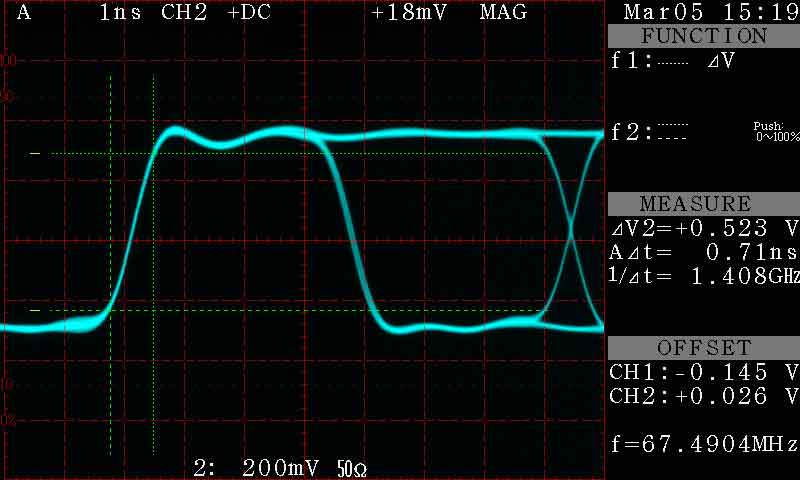

| The reading and writing signal of the laser diode has been sped up along with high density of optical storage media.The TS-80000 Series can provide solutions to engineers with the 1GHz(TS-81000)/600MHz(TS-80600) widest frequency bandwidth. | |||
|
|
|
||
|
|
|||

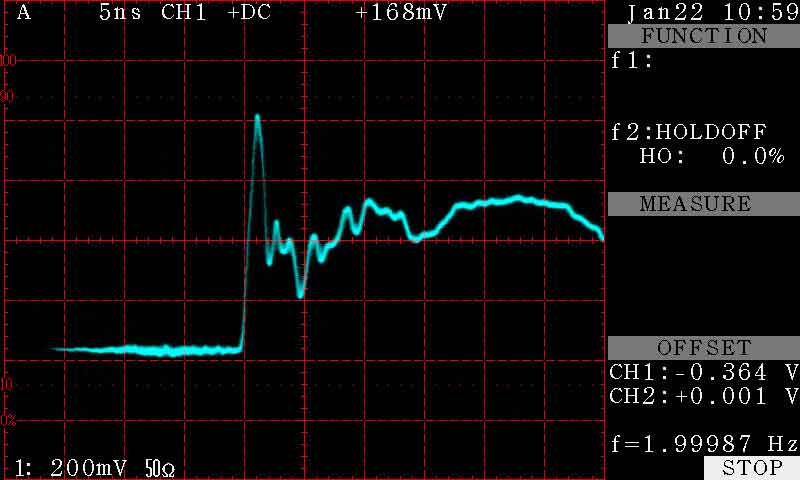

| EMC(Electro Magnetic Compatibility) | Large-capacity transmission | ||
| 1GHz
oscilloscopes are recommended to use for checking of Electro

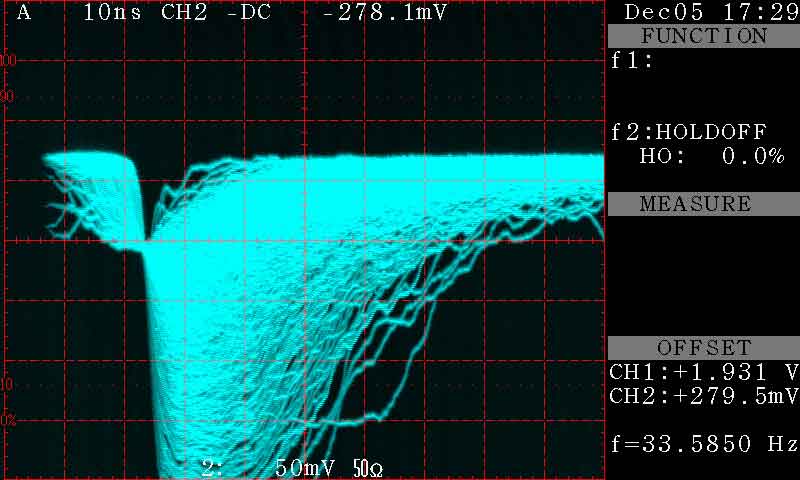

discharge waveform of IEC61000-4-2 standard. The TS-81000 has ability to storage high-speed single-shot signal like the picture. It is also possible to automatically output stored single-shot waveform. |
Digitized
video data is sent via high-speed serial transmission line. The TS-80000 Series accurately displays subtle variation such as overshoot of serial data signal waveforms. |
||
|
|
|
||
|
|
|||

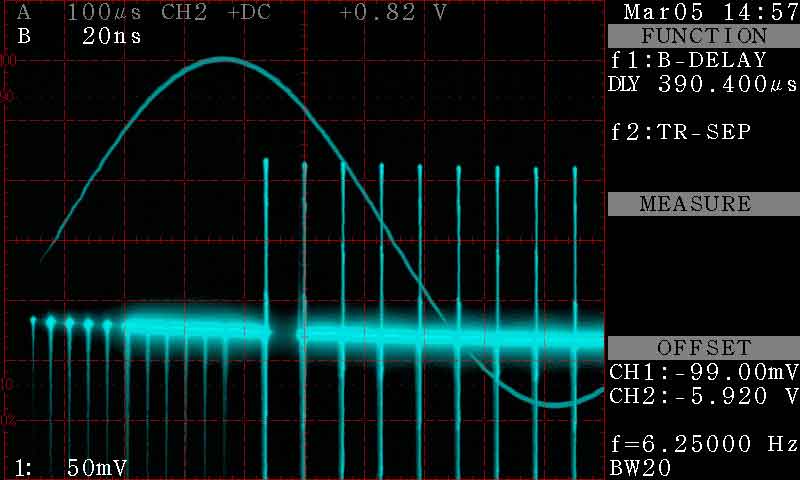

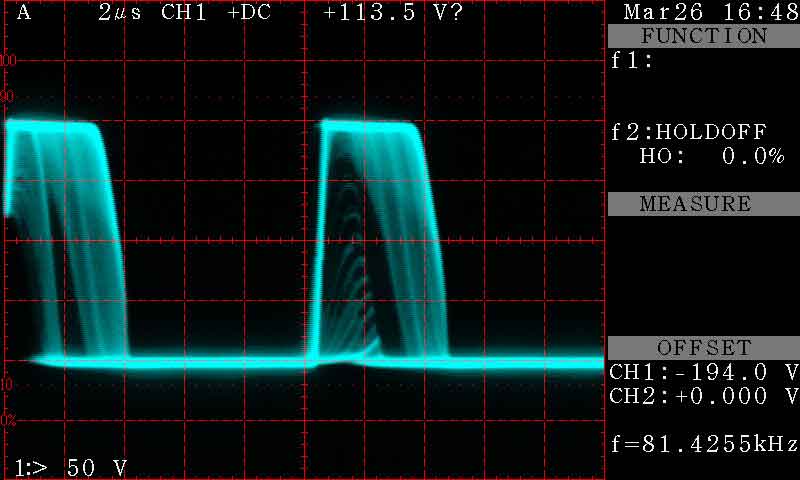

| High power laser waveform | Evaluation of Power-factor improvement circuit (Power supply) | ||
| High-brightness
analog oscilloscope meets for continuous low-repetition rate

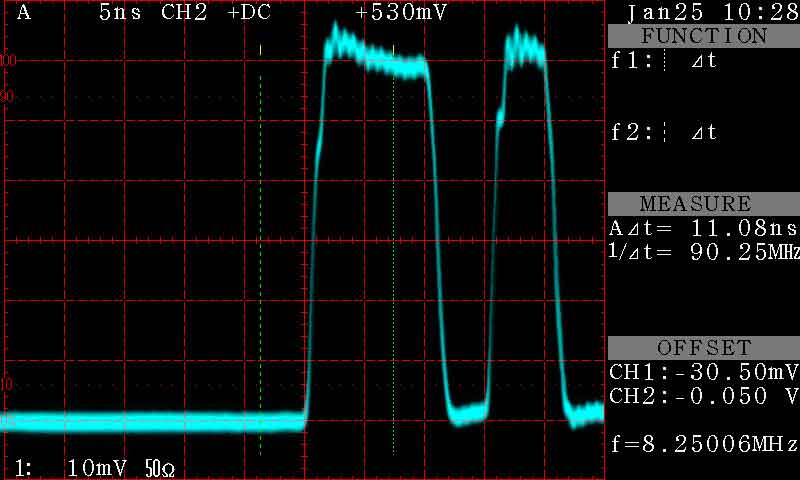

pulse signal. The TS-80000 Series can provide new safety evaluation style as for style high power laser with video output and LAN interface. |

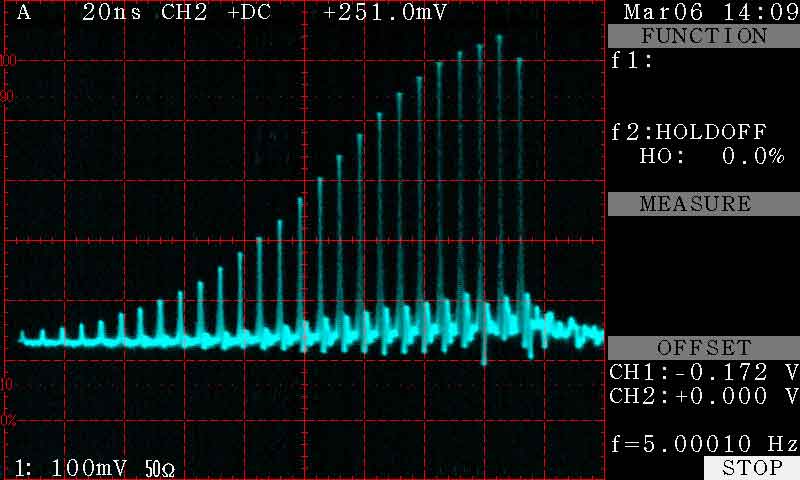

The
TS-80000 Series displays jitter contained waveforms with
brightness vatiation in real time.
¡@ |
||
|
|
|
||
